FPGALab

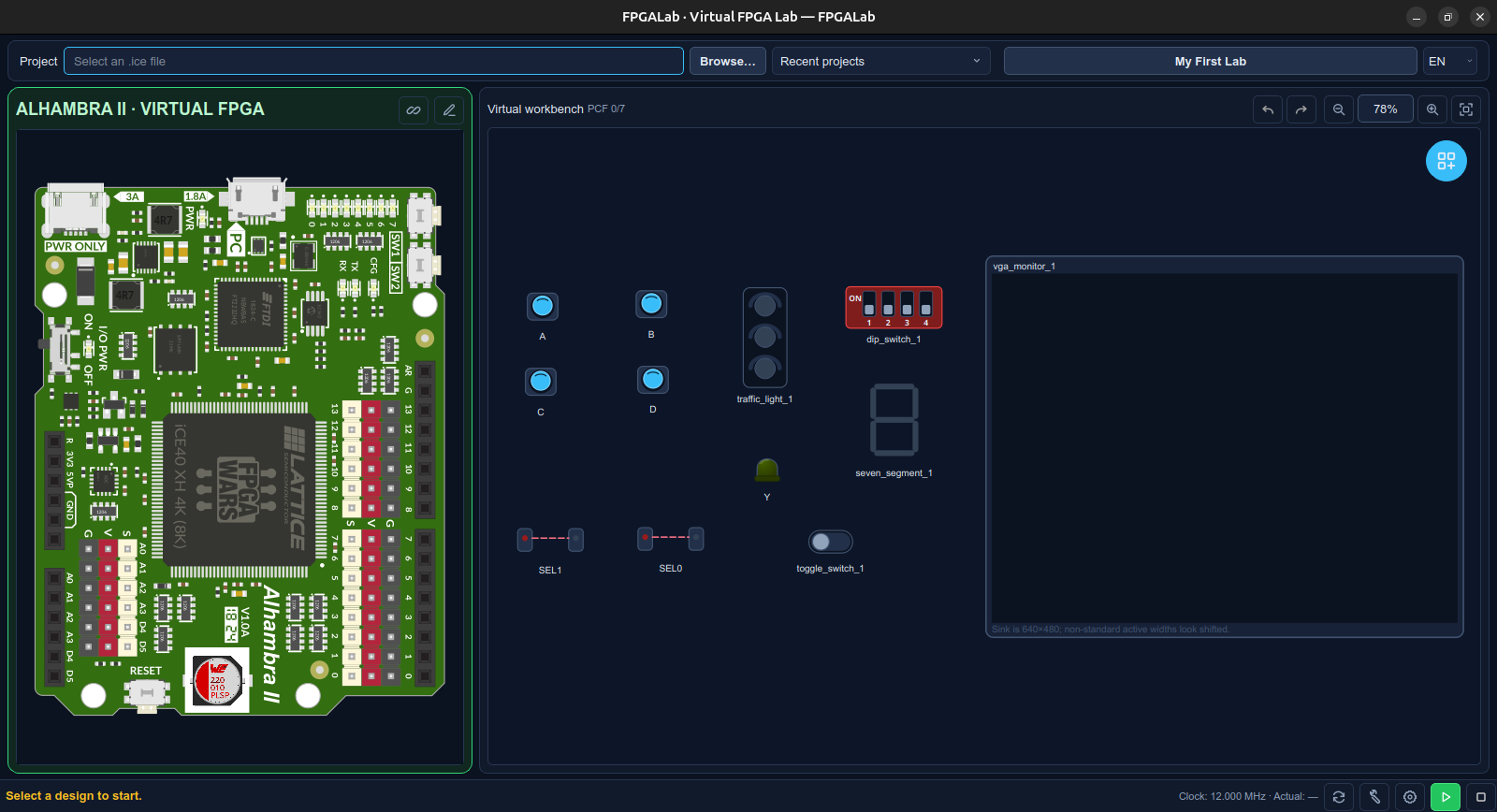

FPGALab is a desktop virtual FPGA laboratory for Icestudio and Verilog designs. It compiles the generated HDL with Verilator and connects the resulting native model to an interactive board and peripheral workbench.

Start here

• Follow Getting started to run your first design.
• Learn how to create, import, and share Labs.
• Use Toolchain and troubleshooting when FPGALab cannot find Verilator or a compiler.
• Use the external peripheral API to create and install your own components.
• Read Architecture and contribution to extend the project.

Current scope

The first supported board is Alhambra II. The catalog includes LEDs, buttons, toggle and DIP switches, a vehicle-presence sensor, traffic lights, seven-segment and BCD displays, and VGA monitors.

FPGALab is released under the GNU Affero General Public License, version 3 or later.
